The

Photo Experience



Technical

Cheat Sheet


Tech. Intro

 NOW WHAT DO I DO:

      1)   Why? Before taking a photograph, ask yourself honestly what you like:

      2)   SLC -  Image consists of three primary elements in varying degrees:

                 SUBJECT .......... LIGHT .......... COMPOSITION

      3)   Insurance  -  Start with  "Snapshot"  of scene.

            -  Move in, optically, & isolate elements of scene.

            -  Bracket "1" stop over/under, ... re-focus ... re-shoot.

            -  Enhance image, if appropriate, with graduated ND filter, etc.

                        (the best image may be behind you. (You're always looking forward.)



SCENIC

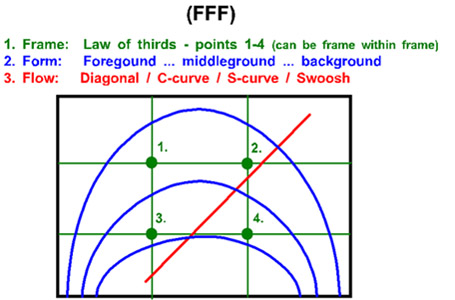

COMPOSITION




 OTHER COMPOSITION

  -  Frame is as important as subject.

  -  Start wide & move in to shoot tight.

  -  Add an element of scale.

  -  Control eye movement thru frame.

 OTHER SHOOTING OPTIONS

  1.  Auto Exposure bracketing

  2.  Panorama

         (vertical stitch less distortion)

  3.  Focus Stacking



Auto Exposure

Bracketing

(from shooting

position)

D700

  - Press lower right front button ...  should say (OF.....1.0)

  - While pressing lower right front button,  press - main command dial to   (3F......1.0)

  - Press shutter release till all 3 images taken

  - Don't forget to return to (OF.......1.0)

D300

  - Same as D700

D201

  - Not usable - Fn button programmed for manual Zeis Makro Planar

D7000

  - MENU ... E5 ... AE

  - While pressing BKT button, on left side of prism, rotate main command dial to   (3F......1.0)

  - Press shutter release till all 3 images taken

  - Don't forget to return to (OF.......1.0)



Pre Shoot Defaults

(discipline to return to defaults after shooting)

    -  Look for accidentally turned dials.

    -  AE Bracketing:  OF ... 1.0

    -  Quality -  RAW ... JPG FINE

    -  ISO - 320



    -  Aperture - F8

    -  Exp. Compensation - 0.0 or -0.3

    -  Bracketing - OF

    -  VR - 0n/off





Live View

D300 / D700   (not available on D200)

   Precise focusing & composition - not good for movement.

   Setup:           shooting menu ... live view ...

                     live view mode - tripod

                     release mode - CH continuous high speed

   Shoot:          Dial on upper left deck - select LV

                    Select "LV"  under Release Mode (upper left dial)

                    Press shutter release to engage Live view
